HPE چندین ویژگی جدید با سرورهای ProLiant DL380e Gen8 خود،
مانند یک برنامه تلفن همراه برای مدیریت از راه دور توسط iLO 4.0 معرفی کرد.
همچنین این نسل جدید از نسل های پیشین این سنسورهای حرارتی را
در سراسر شاسی در اختیار شما قرار داده است
تا دریای 3D دریایی را برای کاهش هزینه های خنک کننده ایجاد کنید.
HPE همچنین منابع قدرت خود را بیشتر کارآمد ساخته است.
گرچه ارزش کارایی هنوز هم 94 درصد است،
مانند نسل های قدیمی تر.

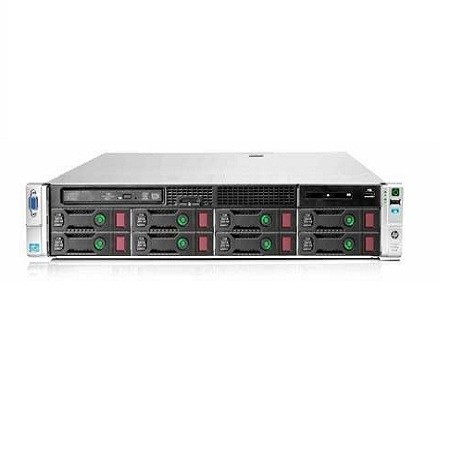

HPE ProLiant DL380e Gen8 Server - Specifications
PROCESSOR - 2 SOCKETS
Intel® Xeon® processor E5-2400 and E5-2400 v2 product families
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS
- Microsoft Windows Server
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Oracle Solaris
- VMware
CHIPSET
Intel® C600 Series Chipset
ON SYSTEM MANAGEMENT CHIPSET
HP iLO (Firmware: HP iLO 4)
MEMORY
- DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)
Maximum Capacity (LRDIMM)
- 384GB (12 x 32GB LRDIMM @1333MHz)
Maximum Capacity (RDIMM)
- 192GB (12 x 16GB RDIMM @1600MHz or 1333MHz)
Maximum Capacity (UDIMM)
- 96GB (12 x 8GB UDIMM @1333MHz)
NETWORK CONTROLLER
HP Ethernet 1Gb 4-port 366i Adapter
EXPANSION SLOTS
| Expansion Slot # | Technology | Bus Width | Connector Width | Form Factor |
|---|
| 1 | PCIe 3.0 | X4 | X8 | Full Length, Full Height Slot |
| 2 | PCIe 3.0 | X8 | X16 | Half Length, Full Height Slot |
| 3 | PCIe 3.0 | X8 | X8 | Half Length, Full Height Slot |
| 4 | PCIe 2.0 | X4 | X8 | Low Profile |
Primary Riser (Riser with SAS)
| Expansion Slot # | Technology | Bus Width | Connector Width | Form Factor |
|---|
| 1 | PCIe 3.0 | X4 | X8 | Full Length, Full Height Slot |
| 2 | PCIe 3.0 | X8 | X16 | Half Length, Full Height Slot |
| 3 | PCIe 3.0 | NA | NA | NA |
| 4 | PCIe 2.0 | X4 | X8 | Low Profile |
Secondary Riser (Optional)
| Expansion Slot # | Technology | Bus Width | Connector Width | Form Factor |
|---|
| 5 | PCIe 3.0 | X16 | X16 | Full Length, Full Height Slot |
| 6 | PCIe 3.0 | X8 | X16 | Half Length, Full Height Slot |
STORAGE CONTROLLER
- HP Dynamic Smart Array B120i Controller
Entry Model - SAS
- HP Dynamic Smart Array B320i/512MB FBWC Controller
Base Models - LFF
- HP Dynamic Smart Array B320i/512MB FBWC Controller
Base Model - SFF
- HP Dynamic Smart Array B320i/512MB FBWC Controller
High Performance Models
- HP Smart Array P420/1GB FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
Storage Models - LFF
- HP Smart Array P420/1GB FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
Storage Models - SFF
- HP Smart Array P420/2GB FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
INTERNAL STORAGE DEVICES
Optical Drive
- Optional: DVD-ROM, DVD-RW
Hard Drives
Drive Bays
- 8 SFF drive bays total with Optical Bay
Optional: +8SFF drive bay (total of 16SFF drive bays) - 8 LFF drive bays total with Optical Bay
- 12 LFF drive bays total without Optical Bay
Optional: +2 Rear Drive Bays (LFF or SFF) - 25 SFF drive bays total without Optical Bay
Optional: +2 Rear Drive Bays (LFF or SFF)
MAXIMUM INTERNAL STORAGE
| Hot Plug SFF SAS | 32.4TB | 27 x 1.2TB (with 25SFF drive cage + Rear 2SFF drive cage) |
| Hot Plug SFF SATA | 27.0TB | 27 x 1TB (with 25SFF drive cage + Rear 2SFF drive cage) |
| Hot Plug LFF SAS | 56.0TB | 14 x 4TB (with 12LFF drive cage + Rear 2LFF drive cage) |
| Hot Plug LFF SATA | 56.0TB | 14 x 4TB (with 12LFF drive cage + Rear 2LFF drive cage) |
| Hot Plug SFF SAS SSD | 21.6TB | 27 x 800GB (with 25SFF drive cage + Rear 2SFF drive cage) |
| Hot Plug SFF SATA SSD | 21.6TB | 27 x 800GB (with 25SFF drive cage + Rear 2SFF drive cage) |
| Hot Plug LFF SATA SSD | 11.2TB | 14 x 800GB (with 12LFF drive cage + Rear 2LFF drive cage) |
INTERFACES
Video
- 2 (1 front, 1 back) not active simultaneously
LOM Network Ports
HP iLO Remote Management Network Port
SD slot
USB 2.0 Ports
- Up to 7 total: up to 2 front, 4 back, 1 internal (secure)
SYSTEM FANS
- (4) Hot-Plug Non-redundant Fans ship standard in 1P Models
- (6) Hot-plug Redundant Fans ship standard in 2P Models
GRAPHICS
- Integrated Matrox G200 video standard
CHASSIS
8 SFF Drive Bay Version: 3.44 (8.75 cm) Height x 17.54" (44.55 cm) Width x 27.5" (69.85 cm) Length
8 LFF Drive Bay Version: 3.44 (8.75cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94cm) Length
12 LFF Drive Bay Version: 3.44 (8.75cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94cm) Length
25 SFF Drive Bay Version: 3.44 (8.75 cm) Height x 17.54" (44.55 cm) Width x 27.5" (69.85 cm) Length
ON SYSTEM MANAGEMENT
HP iLO Management Engine:
- HP iLO
- HP Agentless Management
- HP Active Health System
- HP Intelligent Provisioning
- HP iLO Mobile App
SECURITY
- Power-on password
- Serial interface control
- Administrator's password
